and subduction of transitional crustal sections to

high/ultra-high-P depths (

c.

400 Ma), followed

by exhumation and subsequent generation of

ephemeral supra-subduction or pull-apart oce-

anic basins (

c.

395 Ma), finally closed during

the second event of collision and restarted sub-

duction of the Gondwana margin to the North

(

c.

370 Ma). According to this model the Upper

Units of NW Iberia would represent the lower

plate to the Rheic Ocean suture.

Introduction

Most of the pre-Alpine basement in central

and western Europe is formed by the Variscan

Orogen. This belt can be followed from Iberia,

across Brittany and the French Massif Central,

to the Bohemian Massif, also extending towards

the basement of the Alps, Corsica and Sardinia

(Fig. 1). The orogen was linear in origin, but it

was affected by several late to post-orogenic

oroclinal bends that hinder correlations across

the belt and the understanding of some critical

questions about its origin and evolution through

time (Matte, 2001: Martínez Catalán, 2011; Weil

et al.

, 2012). It is flanked by two different low-

grade thrust belts, a foreland thrust belt to the

South represented by the Cantabrian Zone of the

Iberian Massif, and an external thrust belt to the

North and West forming the Rhenohercynian

and South Portuguese zones (Fig. 1). The external

limits of these thrust belts, both to the South and

North, define a doubly vergent Variscan orogenic

front.

The Variscan Orogen has continuity in eastern

North America in the Appalachian-Alleghanian

Belt. This long orogen was developed during

the main stages of the Pangea assembly which

occurred by the collision of two large continents,

Gondwana to the South and Laurussia to the

North. It is considered that the final assembly

of Pangea occurred in Carboniferous and

14

3. GEOLOGICAL FRAMEWORK

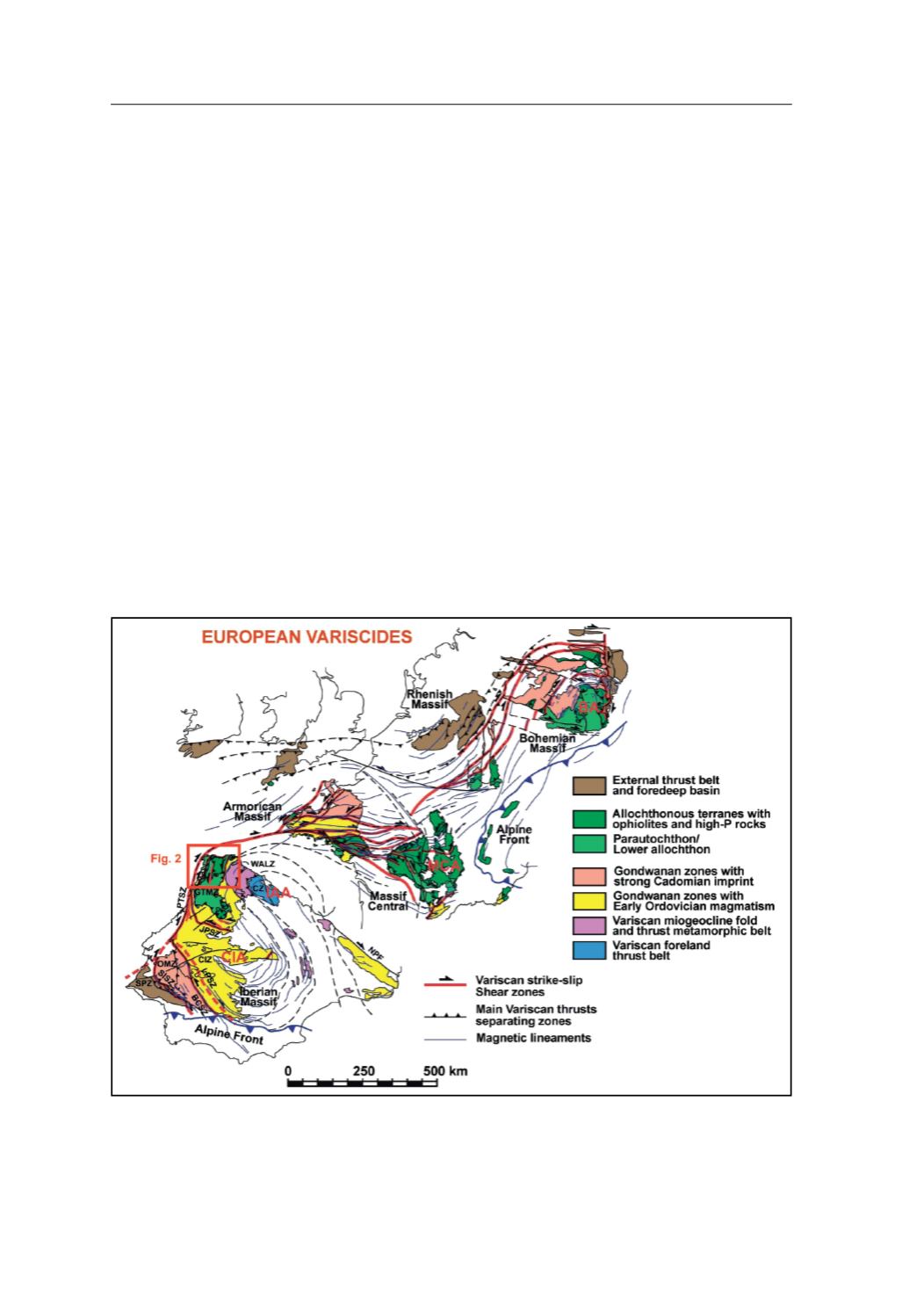

Fig. 1.

Terranes and oroclines of the Variscan belt (Martínez Catalán, 2011). Arcs: BA, Bohemian; CIA, Central Iberian;

IAA, Ibero-Armorican; MCA, Massif Central. Zones of the Iberian Massif: CIZ, Central Iberian; CZ, Cantabrian; GTMZ,

Galicia-Trás-os-Montes; OMZ, Ossa-Morena; SPZ, South Portuguese; WALZ, West Asturian-Leonese. Shear zones and

faults: BCSZ, Badajoz-Córdoba; JPSZ, Juzbado-Penalva; LPSZ, Los Pedroches; NPF, North Pyrenean; PTSZ, Porto-Tomar;

SISZ, Southern Iberian. Location of the geological map and section presented in Fig. 2 is shown.
